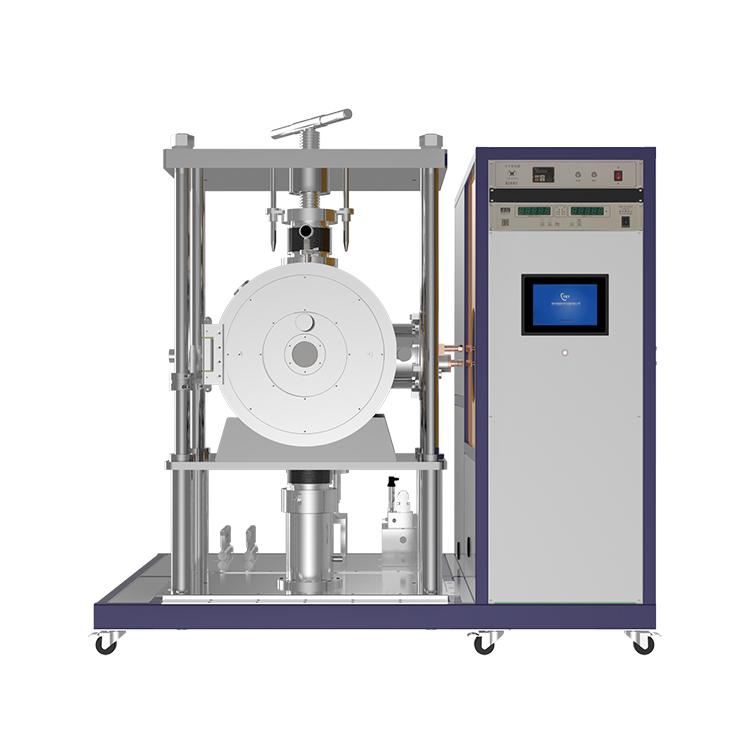

The CYSI Vacuum Rapid Hot Press Furnace combines uniaxial pressure with high-vacuum thermal processing to densify advanced ceramics, cermets, and metal-matrix composites to near-full theoretical density in significantly shorter cycle times than conventional sintering. The graphite die-press system, induction or resistance heating, and real-time force/temperature monitoring deliver precise, reproducible sintering results.
Specifications
| Parameter | Value / Details |
|---|
| Product Model | CY-VRHP |
| Maximum Temperature | 2200 °C (graphite element) |
| Maximum Press Force | 100 kN (≈ 10 ton) |
| Maximum Pressure | 50 MPa (on 50 mm diameter die) |
| Vacuum Level | < 5 × 10⁻² Pa |
| Heating Method | Induction or resistance (graphite) — selectable |
| Heating Rate | Up to 100 °C/min |
| Die Material | Graphite or WC-Co |
| Die Inner Diameter | Up to Ø 100 mm |
| Temperature Controller | PID — programmable ramp/soak/cool |
| Force Display | Digital load cell — real-time readout |
| Atmosphere | Vacuum / inert gas (Ar, N₂) |
| Supply Voltage | AC 380 V / 50 Hz, 3-phase |
| Total Power | ≈ 50 kW |
| Applications | Ceramics, cermets, MMC, WC-Co, SiC, Si₃N₄ sintering |
Trade Information
| Trade Detail | Information |
|---|
| Minimum Order Quantity | 1 Unit |
| Supply Ability | 4 Units Per Month |
| Delivery Time | 3–8 Weeks |
| Main Domestic Market | China |
| Export Markets | Worldwide |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Packaging | Wooden crate with foam-padded export packing |
| Warranty | 12 Months from date of commissioning |
| After-Sales Service | Online technical support + on-site service available |
| Customization | Available on request |
