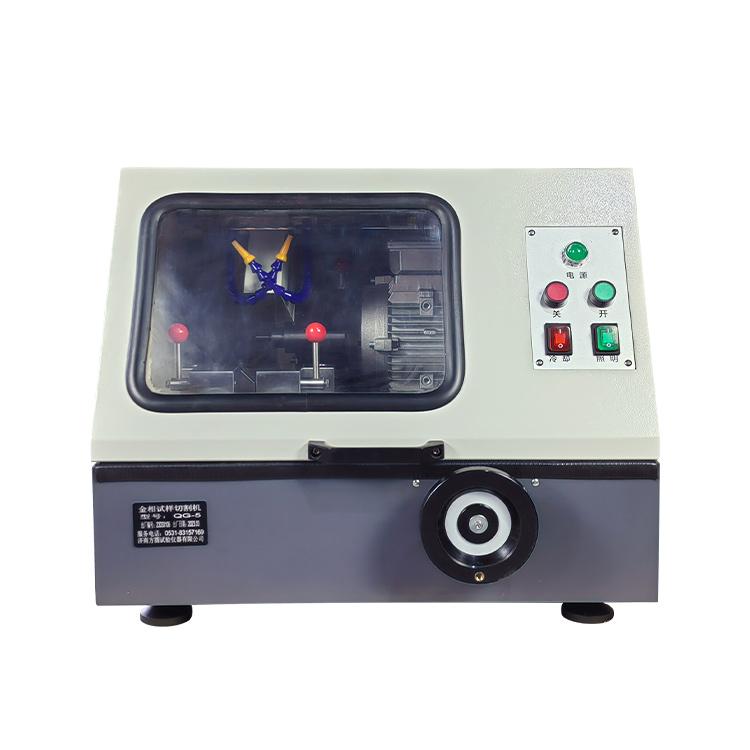

The CYSI Precision Metallographic Sample Cutting Machine is a small, precision abrasive cut-off saw designed for sectioning metal, ceramic, composite, and hard material specimens with minimal deformation and heat-affected zone. Coolant-fed cutting, adjustable feed force, and a vice-type specimen clamp ensure flat, parallel cross-sections ready for immediate mounting and metallographic polishing without additional surface preparation.
Specifications
| Parameter | Value / Details |
|---|
| Product Model | CY-CutSaw-Metallo |
| Cutting Method | Abrasive cut-off wheel — coolant-fed |
| Wheel Diameter | Ø 150 mm (standard) |
| Spindle Speed | 2,800 RPM (fixed) / variable (optional) |
| Motor Power | 370 W |
| Max Section Size | 50 mm diameter / 40 mm square |
| Feed Mode | Manual gravity feed — adjustable counterweight |
| Coolant System | Recirculating coolant pump |
| Specimen Clamp | Vice-type — 0–60 mm jaw width |
| Cutting Angle | 90° (standard) / ±45° (tilting table option) |
| Cut Surface Quality | Ra < 2.5 µm — minimal deformation |
| Supply Voltage | AC 220 V / 50 Hz |
| Total Power | ≈ 500 W |
| Overall Dimensions | 400 × 350 × 400 mm |
| Applications | Metals, ceramics, composites, polymers — metallographic sectioning |
Trade Information
| Trade Detail | Information |
|---|
| Minimum Order Quantity | 1 Unit |
| Supply Ability | 4 Units Per Month |
| Delivery Time | 3–8 Weeks |
| Main Domestic Market | China |
| Export Markets | Worldwide |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Packaging | Wooden crate with foam-padded export packing |
| Warranty | 12 Months from date of commissioning |
| After-Sales Service | Online technical support + on-site service available |
| Customization | Available on request |
