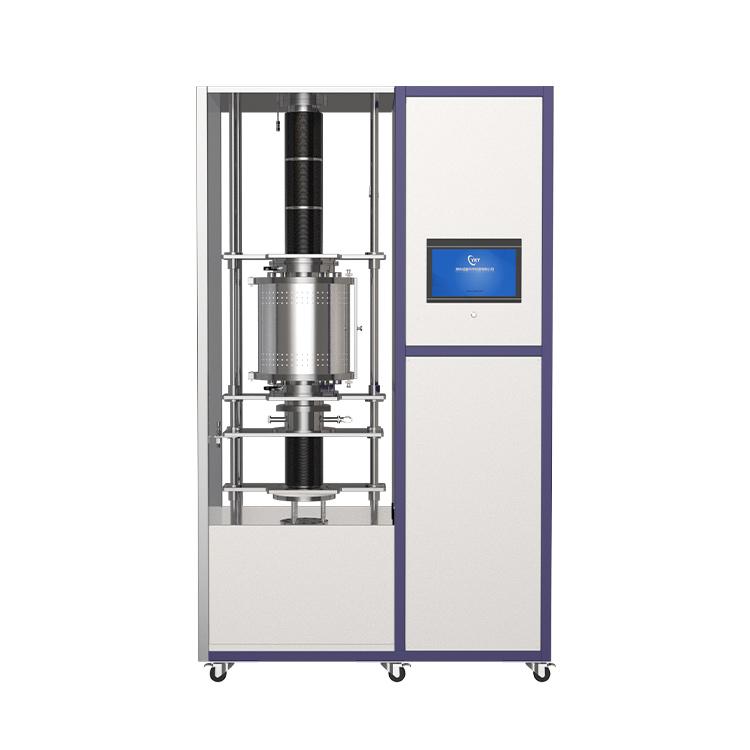

The CYSI 1200°C Vacuum Hot Press Furnace combines uniaxial hydraulic pressure with high-temperature vacuum environment to achieve near-full-density sintering of ceramics, powder metals, and composites at temperatures up to 1200°C. Graphite or steel dies accommodate a wide range of sample shapes, and the integrated load cell provides real-time pressure display for precise pressure-temperature process control.
The CYSI 1200°C Vacuum Hot Press Furnace combines uniaxial hydraulic pressure with high-temperature vacuum environment to achieve near-full-density sintering of ceramics, powder metals, and composites at temperatures up to 1200°C. Graphite or steel dies accommodate a wide range of sample shapes, and the integrated load cell provides real-time pressure display for precise pressure-temperature process control.
| Parameter | Value / Details |
|---|---|
| Product Model | CY-VHPress-1200 |
| Maximum Temperature | 1200 °C |
| Maximum Press Force | 50 kN (≈ 5 ton) |
| Maximum Pressure | 60 MPa (on Ø 30 mm die) |
| Vacuum Level | < 1 × 10⁻² Pa |
| Heating Elements | SiC rod |
| Hot Zone Size | 150 × 150 × 200 mm |
| Die Materials | Graphite / steel / WC |
| Temperature Controller | PID — multi-segment programmable |
| Force Display | Digital load cell — real-time |
| Atmosphere | Vacuum / Ar / N₂ |
| Heating Rate | Up to 30 °C/min |
| Supply Voltage | AC 380 V / 50 Hz, 3-phase |
| Total Power | ≈ 20 kW |
| Applications | Al₂O₃, ZrO₂, SiC, Ti, Cu, Ni powder densification |
| Trade Detail | Information |
|---|---|
| Minimum Order Quantity | 1 Unit |
| Supply Ability | 4 Units Per Month |
| Delivery Time | 3–8 Weeks |
| Main Domestic Market | China |
| Export Markets | Worldwide |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Packaging | Wooden crate with foam-padded export packing |
| Warranty | 12 Months from date of commissioning |
| After-Sales Service | Online technical support + on-site service available |
| Customization | Available on request |
