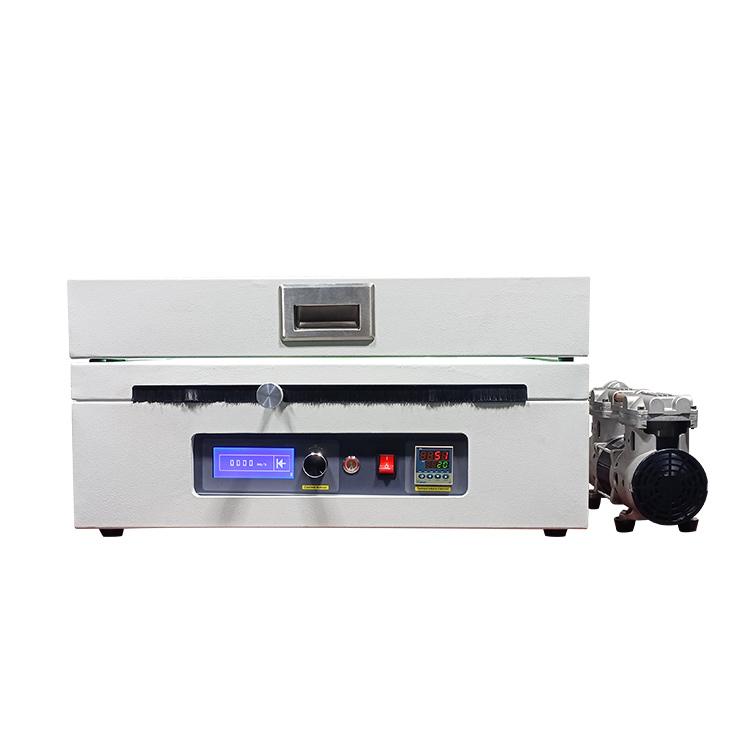

The CYSI Small-Scale Heated Wire-Rod Doctor Blade Film Coater is a compact laboratory coater using calibrated wire-rod applicators (Mayer bar) to deposit uniform liquid films on flat substrates. The integrated substrate heating table (up to 120°C) speeds drying and gel formation, making it ideal for battery electrode prototype coating, polymer membrane casting, and functional coating research at lab scale.
Specifications
| Parameter | Value / Details |
|---|
| Product Model | CY-WireDoc-Heat |
| Coating Method | Wire-wound rod (Mayer bar / wire bar) |
| Wet Film Range | 4–200 µm (wire rod selection) |
| Substrate Heating Temp | Room temperature – 120 °C (PID controlled) |
| Heating Table Size | 200 × 300 mm |
| Coating Speed | Manual or motorised — 0.1–0.5 m/min |
| Wire Rod Bar Sizes | #4, #6, #10, #14, #20, #30, #40 (included set) |
| Substrate Hold-Down | Vacuum hold or clips |
| Table Material | Aluminium — anodised surface |
| Control | Digital temperature controller |
| Supply Voltage | AC 220 V / 50 Hz |
| Total Power | ≈ 500 W |
| Overall Dimensions | 400 × 320 × 200 mm |
| Weight | ≈ 8 kg |
| Applications | Battery electrode, polymer membrane, functional coating R&D |
Trade Information
| Trade Detail | Information |
|---|
| Minimum Order Quantity | 1 Unit |
| Supply Ability | 4 Units Per Month |
| Delivery Time | 3–8 Weeks |
| Main Domestic Market | China |
| Export Markets | Worldwide |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Packaging | Wooden crate with foam-padded export packing |
| Warranty | 12 Months from date of commissioning |
| After-Sales Service | Online technical support + on-site service available |
| Customization | Available on request |
