Buy the CYSI CY-MSZ194-I-DC-SS desktop single-target DC magnetron sputtering coater with stainless steel chamber, 500W DC power, 500°C heated stage, and 1.0×10⁻⁴ Pa base vacuum for metal, optical, and ceramic thin film deposition.

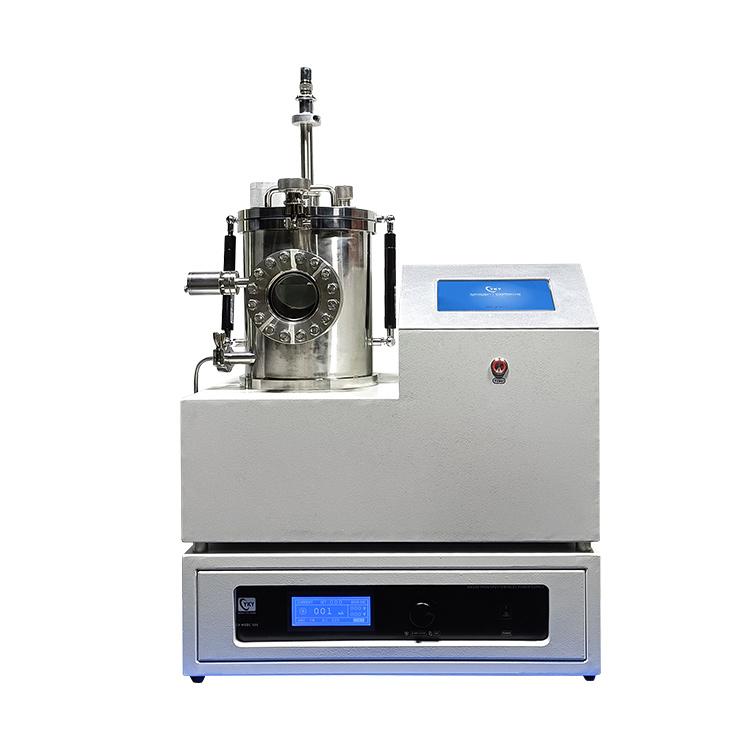

The CYSI Desktop Single Target DC Magnetron Sputtering Coater (CY-MSZ194-I-DC-SS) features a robust 304 stainless steel high-vacuum chamber with a turbomolecular pump system achieving 1.0×10⁻⁴ Pa base pressure. Designed for metal film preparation, electronic and optical coatings, ceramic film deposition, and SEM sample preparation, this modular benchtop system combines a rotating heated sample stage with a 500W DC power supply for reliable, reproducible thin film results.
| Parameter | Value / Details |
|---|---|
| Product Model | CY-MSZ194-I-DC-SS |
| Sample Stage Diameter | φ100 mm |
| Stage Heating Temp | ≤ 500 °C |
| Stage Rotation Speed | ≤ 20 rpm |
| Magnetic Target Gun | 2-inch; Dia. 50.8 mm, thickness ≤ 3 mm |
| Vacuum Chamber Size | φ194 mm × 263 mm |
| Chamber Material | 304 Stainless Steel |
| Observation Window | Omnidirectional quartz window |
| Opening Method | Removable top cover |
| Backing Pump | Low-noise bipolar rotary vane pump — 1.1 L/s |
| Turbomolecular Pump | High pumping-speed — 60 L/s |
| Base Pressure | 1.0 × 10⁻⁴ Pa |
| DC Power Supply | 500 W |
| Supply Voltage | AC 220V / 50–60 Hz |
| Total Power | 2 kW |
| Overall Dimensions | 550 × 450 × 750 mm |
| Weight | 80 kg |
| Applications | Metal films, electronic/optical coatings, ceramics, SEM sample prep |
| Trade Detail | Information |
|---|---|
| Minimum Order Quantity | 1 Unit |
| Supply Ability | 4 Units Per Month |
| Delivery Time | 1–16 Weeks |
| Main Domestic Market | China |
| Export Markets | Worldwide |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Packaging | Wooden crate with foam-padded export packing |
| Warranty | 12 Months from date of commissioning |
| After-Sales Service | Online technical support + on-site service available |
| Customization | Available on request |
