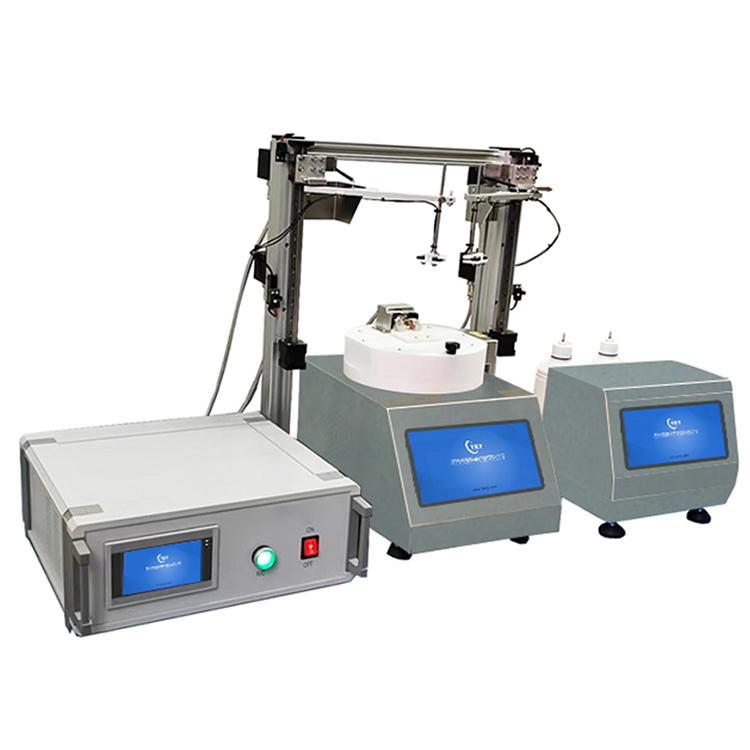

The CYSI Fully Automatic Multi-Layer Perovskite Rotary Coating Machine automates the sequential deposition of multi-layer perovskite solar cell stacks — ETL, perovskite absorber, HTL, and interlayers — in a single programmed workflow without manual intervention. The integrated rotary substrate transfer arm, precise anti-solvent dripping system, and optional glove box compatibility make it the definitive automated platform for high-efficiency perovskite device fabrication and yield optimisation.
Specifications
| Parameter | Value / Details |
|---|
| Product Model | CY-SP-Perov-Auto |
| Coating Layers | Up to 6 layers — fully automated sequential |
| Spin Speed Range | 100–8,000 RPM |
| Anti-Solvent Dripping | Programmable auto-dispense — timing ± 0.1 s |
| Substrate Size | Up to 50 × 50 mm (customisable) |
| Rotary Transfer Arm | Yes — automated substrate transfer between stations |
| Atmosphere | Compatible with glove box (N₂/Ar) integration |
| Recipe Storage | Up to 100 multi-layer process recipes |
| Exhaust System | Integrated — solvent vapour extraction |
| Control Interface | Touch-screen HMI — full process automation |
| Heating Stage | Optional integrated hot plate — up to 150 °C |
| Supply Voltage | AC 220 V / 50 Hz |
| Total Power | ≈ 2 kW |
| Overall Dimensions | 800 × 700 × 500 mm |
| Applications | Perovskite PV, OPV, OLED multi-layer automated deposition |
Trade Information
| Trade Detail | Information |
|---|
| Minimum Order Quantity | 1 Unit |
| Supply Ability | 4 Units Per Month |
| Delivery Time | 3–8 Weeks |
| Main Domestic Market | China |
| Export Markets | Worldwide |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Packaging | Wooden crate with foam-padded export packing |
| Warranty | 12 Months from date of commissioning |
| After-Sales Service | Online technical support + on-site service available |
| Customization | Available on request |
