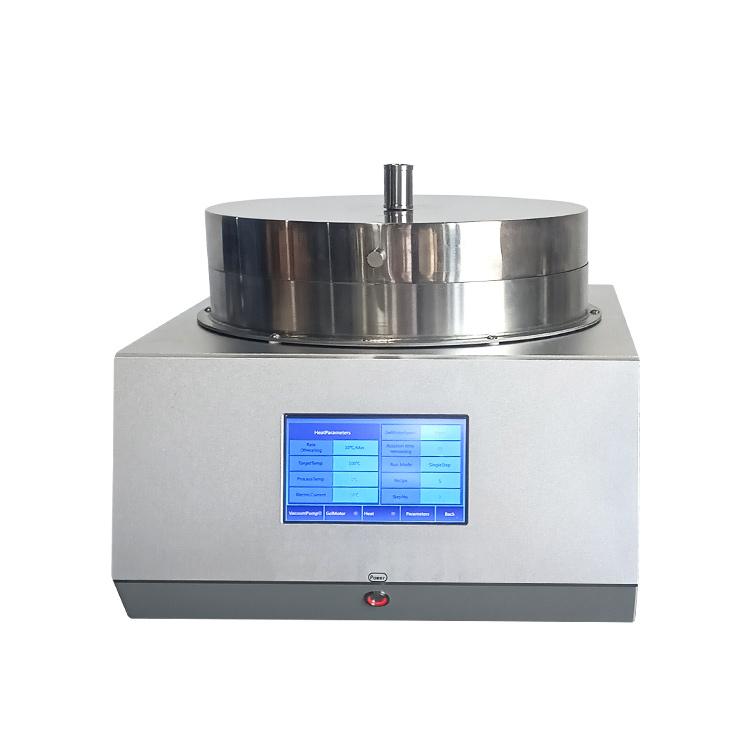

The CYSI 12-Inch Spin Coater features a precision-engineered stainless steel enclosure chamber and high-torque direct-drive motor capable of uniformly coating substrates up to 300 mm (12 inches) in diameter. A programmable multi-step speed profile controller, vacuum chuck with adjustable hold-down, and integrated exhaust port make it the ideal platform for photoresist, sol-gel, perovskite precursor, and functional thin film deposition on large-area substrates in advanced R&D and pilot production.
Specifications
| Parameter | Value / Details |
|---|
| Product Model | CY-SP-12IN-SS |
| Maximum Substrate Size | 300 mm (12 inches) diameter |
| Speed Range | 100–8,000 RPM |
| Speed Accuracy | ± 1 RPM |
| Acceleration | Programmable — up to 30,000 RPM/s |
| Motor Type | Brushless DC direct-drive |
| Chuck Type | Vacuum chuck — 300 mm |
| Chamber Material | 304 Stainless Steel — corrosion-resistant |
| Exhaust Port | Built-in — for solvent vapour extraction |
| Programming | Multi-step speed/time profiles — up to 99 steps |
| Control Interface | Touch-screen HMI with recipe storage |
| Dispense Integration | Compatible with auto-dispense arm (optional) |
| Supply Voltage | AC 220 V / 50 Hz |
| Total Power | ≈ 1 kW |
| Overall Dimensions | 600 × 500 × 400 mm |
| Applications | Photoresist, sol-gel, perovskite, OLED, polymer films on 12" substrates |
Trade Information
| Trade Detail | Information |
|---|
| Minimum Order Quantity | 1 Unit |
| Supply Ability | 4 Units Per Month |
| Delivery Time | 3–8 Weeks |
| Main Domestic Market | China |
| Export Markets | Worldwide |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Packaging | Wooden crate with foam-padded export packing |
| Warranty | 12 Months from date of commissioning |
| After-Sales Service | Online technical support + on-site service available |
| Customization | Available on request |
