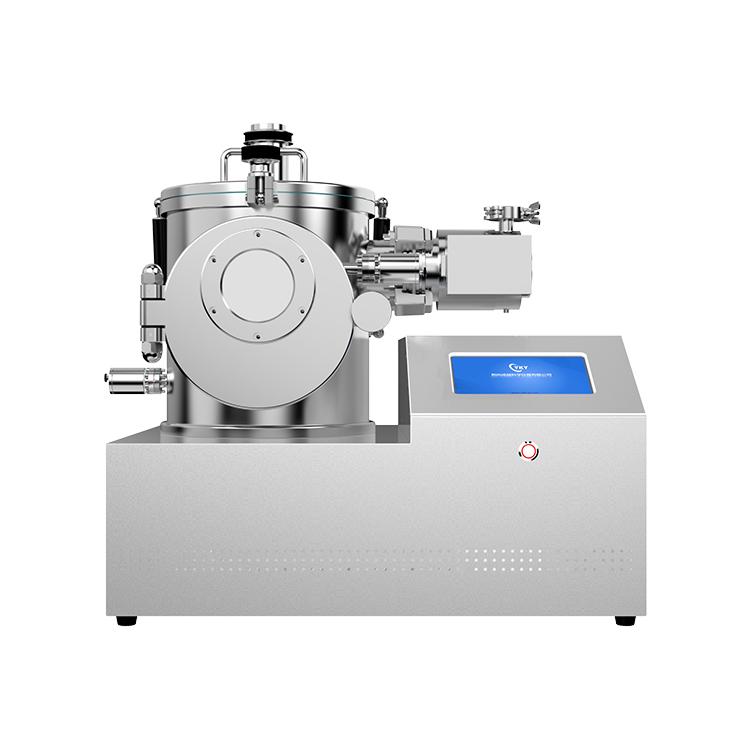

CYSI CY-EVZ254-II small high vacuum dual-source thermal evaporation coater with 1.0×10⁻⁵ Pa ultimate vacuum, 1800°C max evaporation, rotating stage, and tungsten wire basket sources for metal and organic film deposition.
The CYSI CY-EVZ254-II Small High Vacuum Dual Source Thermal Evaporation Coater achieves an ultimate vacuum of 1.0×10⁻⁵ Pa via an integrated molecular pump group, supporting evaporation of common metals and selected non-metals at temperatures up to 1800°C from two independent tungsten wire basket sources. The rotating sample stage, adjustable source-to-stage distance, and adaptive baffle observation window ensure uniform, clean film deposition for metals, organics, and dielectric materials.
| Parameter | Value / Details |
|---|---|
| Product Model | CY-EVZ254-II-HH-SS |
| Chamber Size | φ254 mm × 300 mm |
| Sources | 2 × tungsten wire basket |
| Max Evap Temp | 1800 °C |
| Sample Stage | φ60 mm rotating — 1–20 rpm |
| Source Distance | 60–100 mm (adjustable) |
| Molecular Pump | 60 L/s |
| Ultimate Vacuum | 1.0 × 10⁻⁵ Pa |
| Time to Vacuum | 1.0 × 10⁻⁴ Pa in ~20 min |
| Total Power | 2 kW |
| Dimensions | 600 × 300 × 470 mm |
| Weight | 40 kg |
| Applications | Metal films, organics, dielectrics, OLED, solar cell layers |
| Trade Detail | Information |
|---|---|
| Minimum Order Quantity | 1 Unit |
| Supply Ability | 4 Units Per Month |
| Delivery Time | 1–16 Weeks |
| Main Domestic Market | China |
| Export Markets | Worldwide |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Packaging | Wooden crate with foam-padded export packing |
| Warranty | 12 Months from date of commissioning |
| After-Sales Service | Online technical support + on-site service available |
| Customization | Available on request |
