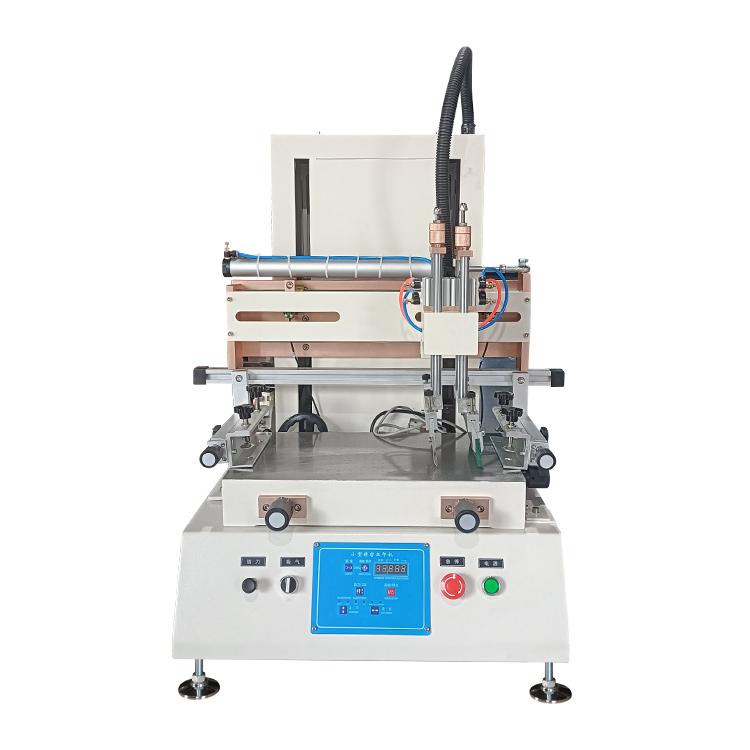

The CYSI Small High-Precision Screen Printing Machine deposits thick-film pastes, conductive inks, and electrode materials through a precision stainless steel or polyester mesh screen onto flat substrates. With digital pressure, speed, and squeegee angle control, it produces highly uniform and repeatable print patterns for crystalline silicon solar cell front-contact metallisation, thick-film capacitors, and printed electronics research.
Specifications
| Parameter | Value / Details |
|---|
| Product Model | CY-ScrPrint-Lab |
| Printing Method | Flat-bed screen printing — manual & semi-auto |
| Print Area | Up to 200 × 200 mm |
| Print Repeat Accuracy | ± 0.05 mm |
| Screen Type | Stainless steel or polyester mesh — user-replaceable |
| Squeegee Pressure | Digitally adjustable — 0.1–5 kg/cm |
| Squeegee Speed | Adjustable — 50–300 mm/s |
| Screen Angle | Adjustable snap-off distance |
| Substrate Holding | Vacuum hold — flat & secure |
| Substrate Thickness | 0.1–5 mm |
| Control | Digital panel — pressure, speed, auto-lift |
| Supply Voltage | AC 220 V / 50 Hz |
| Total Power | ≈ 500 W |
| Overall Dimensions | 600 × 500 × 600 mm |
| Applications | Solar cell front contacts, PERC cells, MLCC, printed electronics |
Trade Information
| Trade Detail | Information |
|---|
| Minimum Order Quantity | 1 Unit |
| Supply Ability | 4 Units Per Month |
| Delivery Time | 3–8 Weeks |
| Main Domestic Market | China |
| Export Markets | Worldwide |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Packaging | Wooden crate with foam-padded export packing |
| Warranty | 12 Months from date of commissioning |
| After-Sales Service | Online technical support + on-site service available |
| Customization | Available on request |
