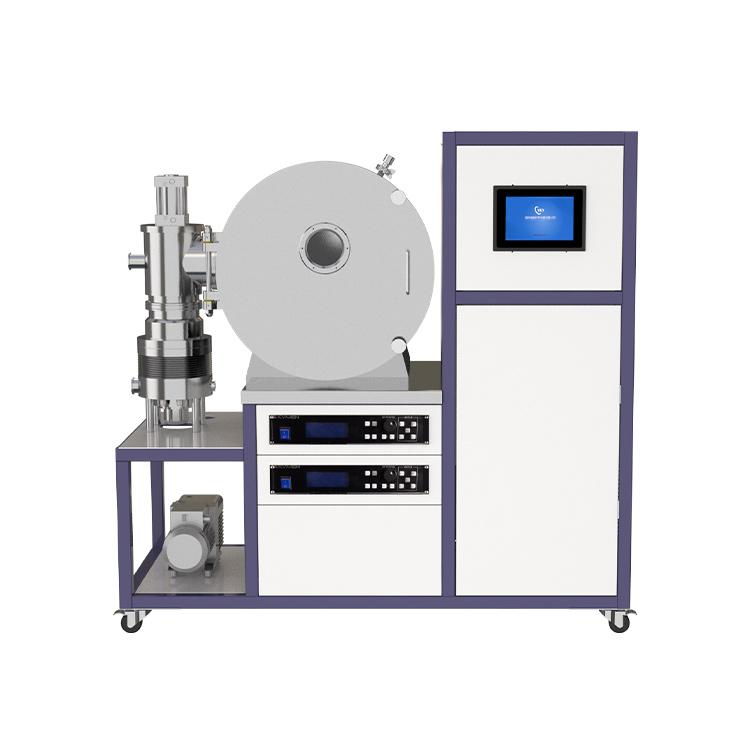

The CYSI Winding High-Vacuum Evaporation Coating Machine enables continuous physical vapour deposition of metal and dielectric thin films on roll-format flexible substrates — PET, PEN, PI, metal foil — in a single high-vacuum pass. Precision tension control across the unwind, deposition, and rewind zones ensures wrinkle-free substrate transport, while the resistance evaporation source array delivers uniform coatings across the full web width for flexible electronics, barrier films, and decorative metallic coating production.
Specifications
| Parameter | Value / Details |
|---|
| Product Model | CY-TEV-RTR-Wind |
| Coating Method | Resistance thermal evaporation — roll-to-roll |
| Web Width | Up to 300 mm |
| Roll Diameter | Max Ø 300 mm (unwind & rewind) |
| Web Speed | 0.1–10 m/min (servo tension control) |
| Tension Control | Closed-loop — unwind, deposition, rewind zones |
| Evaporation Sources | Linear array — up to 4 sources across web width |
| Base Pressure | < 5 × 10⁻³ Pa |
| Vacuum System | Diffusion pump + rotary backing pump |
| Thickness Monitor | QCM — real-time deposition rate |
| Substrate Types | PET, PEN, PI, aluminium foil, copper foil |
| Depositable Materials | Al, Ag, Cu, Cr, SiO, MgF₂, ZnS |
| Supply Voltage | AC 380 V / 50 Hz, 3-phase |
| Total Power | ≈ 10 kW |
| Applications | Flexible electronics, barrier films, metallised packaging, OPV |
