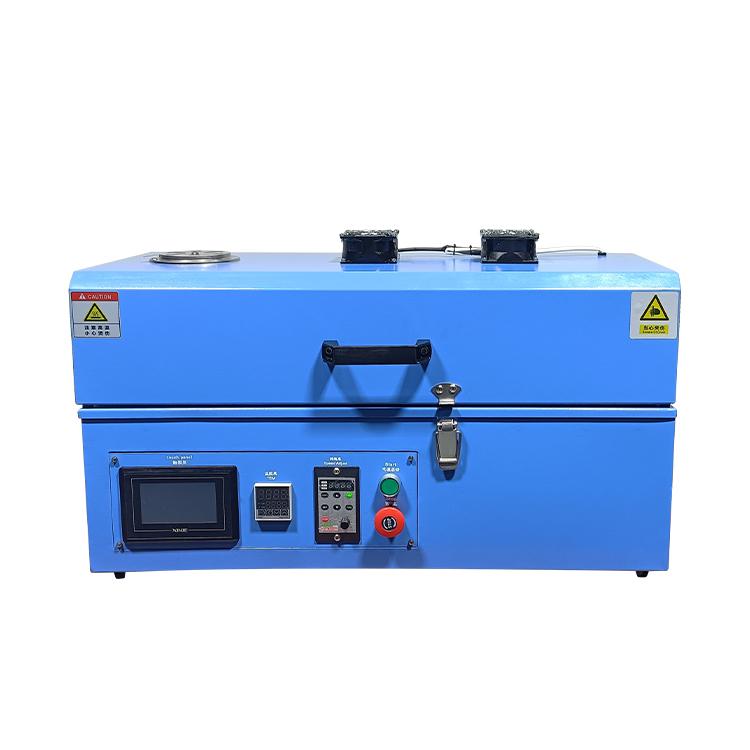

The CYSI Large Heatable Automatic Film Coater combines a wide-format motorised doctor blade applicator with a precision heated vacuum bed to produce large-area, uniform thin films for ceramic tape casting and Li-ion battery electrode fabrication. Programmable coating speed, adjustable blade gap from 0–2 mm, and substrate heating up to 120°C deliver reproducible wet-film deposition on substrates up to 300 mm wide with excellent edge definition and thickness uniformity.
Specifications
| Parameter | Value / Details |
|---|
| Product Model | CY-DocBlade-Large-Heat |
| Coating Method | Doctor blade (gap bar) — motorised automatic |
| Coating Width | Up to 300 mm |
| Blade Gap Range | 0–2,000 µm (micrometer-precision adjustment) |
| Wet Film Thickness | 5–1,500 µm (dependent on gap + viscosity) |
| Coating Speed | 5–500 mm/min (servo motor) |
| Heated Vacuum Bed | Up to 120 °C — vacuum hold-down |
| Bed Size | 400 × 350 mm |
| Substrate Types | Foil, glass, polymer, fabric, ceramic green tape |
| Speed Accuracy | ± 1 mm/min |
| Control System | PLC + touch-screen HMI |
| Supply Voltage | AC 220 V / 50 Hz |
| Total Power | ≈ 2 kW |
| Overall Dimensions | 900 × 550 × 350 mm |
| Applications | Ceramic tape casting, LiB electrodes, fuel cells, membranes |
Trade Information
| Trade Detail | Information |
|---|
| Minimum Order Quantity | 1 Unit |
| Supply Ability | 4 Units Per Month |
| Delivery Time | 3–8 Weeks |
| Main Domestic Market | China |
| Export Markets | Worldwide |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Packaging | Wooden crate with foam-padded export packing |
| Warranty | 12 Months from date of commissioning |
| After-Sales Service | Online technical support + on-site service available |
| Customization | Available on request |
