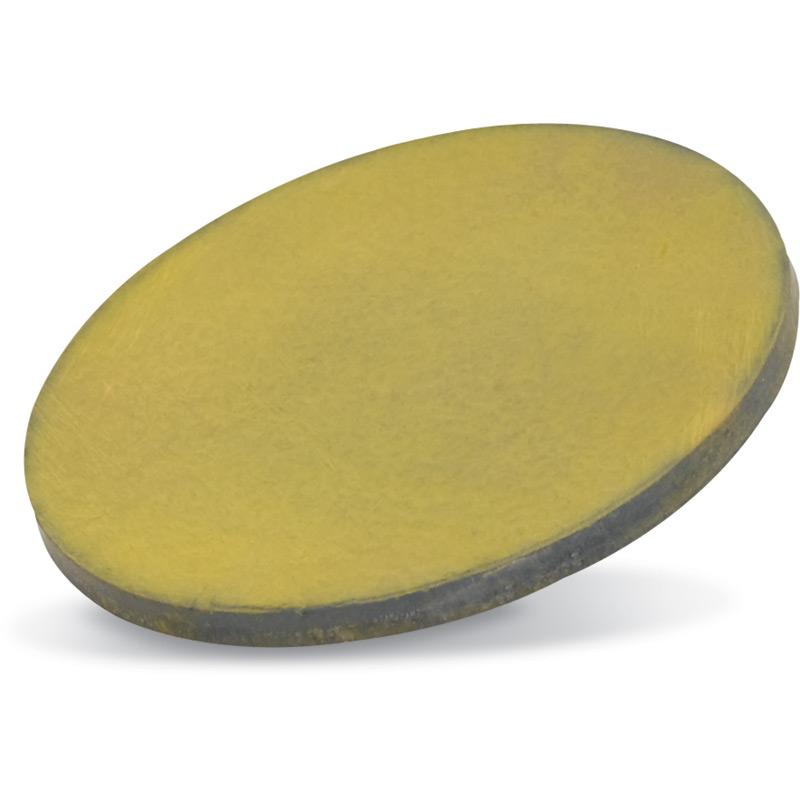

High-purity Vanadium Carbide (VC) sputtering targets for DC/RF magnetron deposition of ultra-hard wear-resistant coatings on cutting tools, dies, and precision components. VC thin films exhibit hardness values of 20–28 GPa, low coefficient of friction, and excellent thermal stability up to 700°C. CY Scientific hot-press sintered VC targets achieve > 95% theoretical density for splash-free sputtering and consistent coating hardness throughout the target service life.
Specifications
| Parameter | Value / Details |
|---|
| Material | Vanadium Carbide (VC) |
| Purity | 99.5% (2N5) / 99.9% (3N) |
| Hardness (Film) | 20–28 GPa (Vickers) |
| Relative Density | > 95% theoretical density (hot-press sintered) |
| Crystal Structure | Rock salt (cubic) — NaCl structure |
| Melting Point | 2810 °C |
| Standard Sizes | Ø 50.8 mm × 3 mm / Ø 76.2 mm × 3 mm |
| Custom Sizes | Rectangular, bonded, and custom sizes available |
| Sputtering Method | DC or RF magnetron sputtering |
| Process Gas | Ar / Ar + CH₄ or C₂H₂ (for stoichiometry control) |
| Film Applications | Hard coatings, cutting tools, die surfaces, tribological coatings |
| Packaging | Vacuum-sealed bag + foam box |
| Certification | Purity + density certificate provided |
| Storage | Cool, dry — handle carefully to avoid edge chipping |
| Customization | VC-TiC, VC-NbC composites, size, purity on request |
Trade Information
| Trade Detail | Information |
|---|
| Minimum Order Quantity | 1 Piece |
| Supply Ability | 100 Pieces Per Month |
| Delivery Time | 1–3 Weeks |
| Main Domestic Market | China |
| Export Markets | Worldwide |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Packaging | Sealed vacuum bag + foam-padded box |
| Certification | ISO 9001 — quality management certified |
| Storage | Cool, dry environment — avoid humidity |
| Customization | Custom size, purity, bonding, and shape available |
