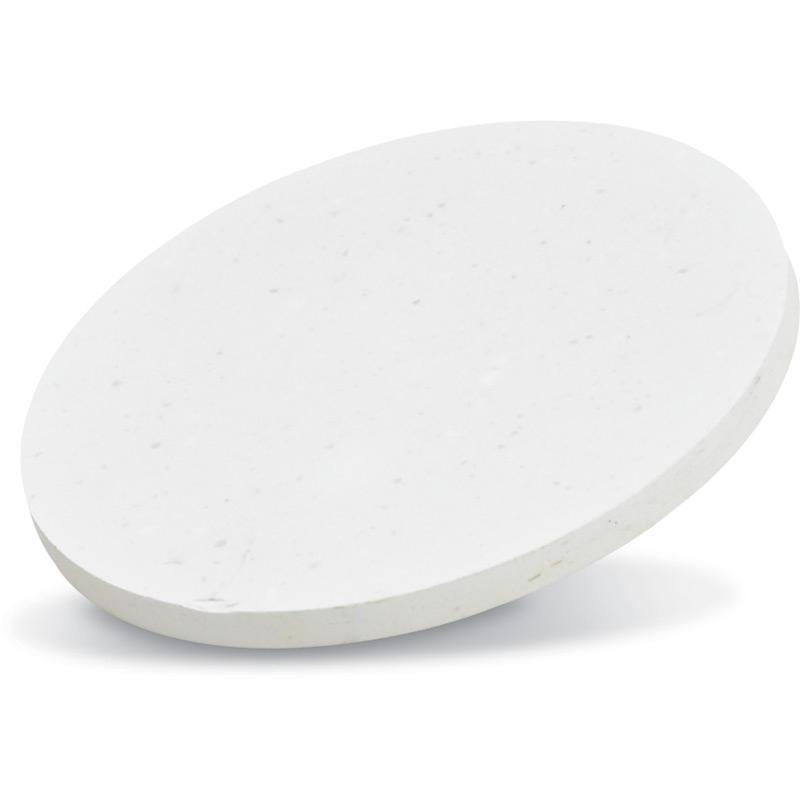

High-purity Zinc Sulfide (ZnS) sputtering targets for RF magnetron deposition of infrared-transparent optical films, electroluminescent (EL) display phosphor layers, and anti-reflection coatings. ZnS is a wide-bandgap II-VI semiconductor with a refractive index of ~2.35 and excellent IR transparency from 0.4–12 µm. CY Scientific ZnS targets are cold-press sintered to high density for stable RF sputtering without cracking or thermal fracture.
Specifications
| Parameter | Value / Details |
|---|
| Material | Zinc Sulfide (ZnS) |
| Purity | 99.99% (4N) |
| Crystal Structure | Cubic sphalerite (zinc blende) |
| Refractive Index | ~2.35 @ 550 nm |
| IR Transparency | 0.4–12 µm |
| Bandgap | 3.6 eV (direct) |
| Relative Density | > 95% theoretical density |
| Standard Sizes | Ø 50.8 mm × 3 mm / Ø 76.2 mm × 3 mm |
| Sputtering Method | RF magnetron sputtering |
| Process Gas | Ar (non-reactive) / Ar + H₂S (reactive, optional) |
| Film Applications | IR optics, EL phosphor, ARC coatings, solar cell buffer |
| Packaging | Vacuum-sealed bag + foam box |
| Certification | Purity certificate provided |
| Storage | Cool, dry — protect from UV and moisture |
| Customization | Size, purity, bonding, and quantity on request |
Trade Information
| Trade Detail | Information |
|---|
| Minimum Order Quantity | 1 Piece |
| Supply Ability | 100 Pieces Per Month |
| Delivery Time | 1–3 Weeks |
| Main Domestic Market | China |
| Export Markets | Worldwide |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Packaging | Sealed vacuum bag + foam-padded box |
| Certification | ISO 9001 — quality management certified |
| Storage | Cool, dry environment — avoid humidity |
| Customization | Custom size, purity, bonding, and shape available |
