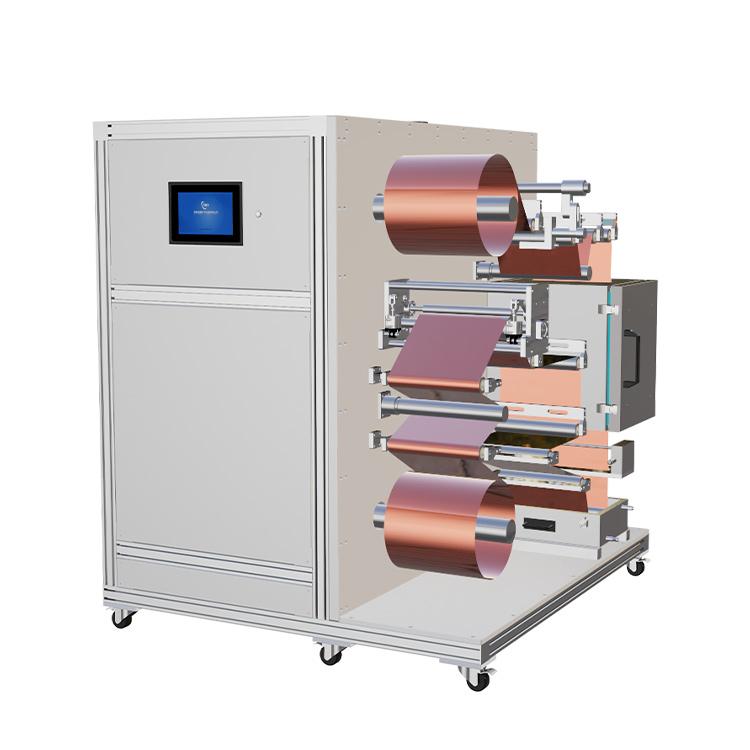

The CYSI Double-Sided Dip Coating Machine deposits uniform electrode slurry films simultaneously on both faces of metallic foil substrates in a single pass, halving coating time versus single-side sequential methods. Precision withdrawal speed control, an integrated heated drying zone, and consistent immersion depth ensure uniform double-sided electrode coating for lithium-ion battery anode and cathode development at pilot and small-production scales.
Specifications
| Parameter | Value / Details |
|---|
| Product Model | CY-DipCoat-2Side |
| Coating Method | Dip coating — simultaneous double-sided |
| Withdrawal Speed | 0.1–50 mm/s (servo motor, programmable) |
| Immersion Depth | Up to 200 mm — adjustable |
| Substrate Width | Up to 200 mm |
| Heated Drying Zone | Integrated IR heating — up to 150 °C |
| Wet Film Thickness | Controlled by withdrawal speed + slurry viscosity |
| Speed Accuracy | ± 0.1 mm/s |
| Multi-Cycle | Programmable — up to 99 dip cycles |
| Atmosphere | Ambient (optional glove box integration) |
| Control System | Touch-screen HMI — speed, temp, cycles |
| Supply Voltage | AC 220 V / 50 Hz |
| Total Power | ≈ 1.5 kW |
| Overall Dimensions | 600 × 400 × 1200 mm |
| Applications | LiB electrode double-side coating, sol-gel, polymer membranes |
Trade Information
| Trade Detail | Information |
|---|
| Minimum Order Quantity | 1 Unit |
| Supply Ability | 4 Units Per Month |
| Delivery Time | 3–8 Weeks |
| Main Domestic Market | China |
| Export Markets | Worldwide |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Packaging | Wooden crate with foam-padded export packing |
| Warranty | 12 Months from date of commissioning |
| After-Sales Service | Online technical support + on-site service available |
| Customization | Available on request |
