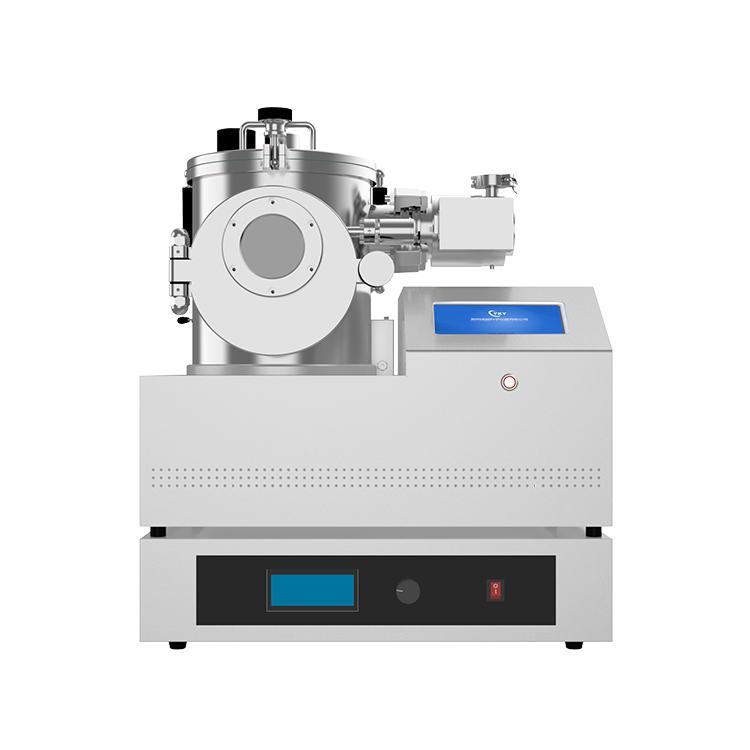

CYSI CY-MSZ180-DC-SS desktop single-target magnetron sputtering apparatus with 304 stainless steel chamber, 600 L/s turbo pump, rotating heated sample stage, and 1.0×10⁻⁴ Pa base pressure for research thin film deposition.
The CYSI Desktop Stainless Steel Cavity Single Target Magnetron Sputtering Coating Apparatus delivers the same excellent vacuum performance and compact form factor as the quartz variant, with a durable 304 stainless steel chamber construction built for long-term laboratory use. Equipped with a quartz observation window with protective baffle, a rotating heated sample stage, and an intuitive modular control interface, this instrument provides consistent, reproducible thin film deposition for metal, ceramic, and optical research applications.
| Parameter | Value / Details |
|---|---|
| Product Model | CY-MSZ180-DC-SS |
| Chamber Material | 304 Stainless Steel |
| Chamber Size | φ180 mm × 200 mm |
| Target | 2-inch; Dia. 50.8 mm, thickness ≤ 3 mm |
| Sample Stage | φ100 mm rotating |
| Molecular Pump | 600 L/s |
| Base Pressure | 1.0 × 10⁻⁴ Pa |
| Power Supply | DC 300 W |
| Supply Voltage | AC 220V / 50–60 Hz |
| Total Power | 2 kW |
| Dimensions | 550 × 350 × 450 mm |
| Applications | Metal films, optical coatings, ceramics, SEM prep |
| Trade Detail | Information |
|---|---|
| Minimum Order Quantity | 1 Unit |
| Supply Ability | 4 Units Per Month |
| Delivery Time | 1–16 Weeks |
| Main Domestic Market | China |
| Export Markets | Worldwide |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Packaging | Wooden crate with foam-padded export packing |
| Warranty | 12 Months from date of commissioning |
| After-Sales Service | Online technical support + on-site service available |
| Customization | Available on request |
