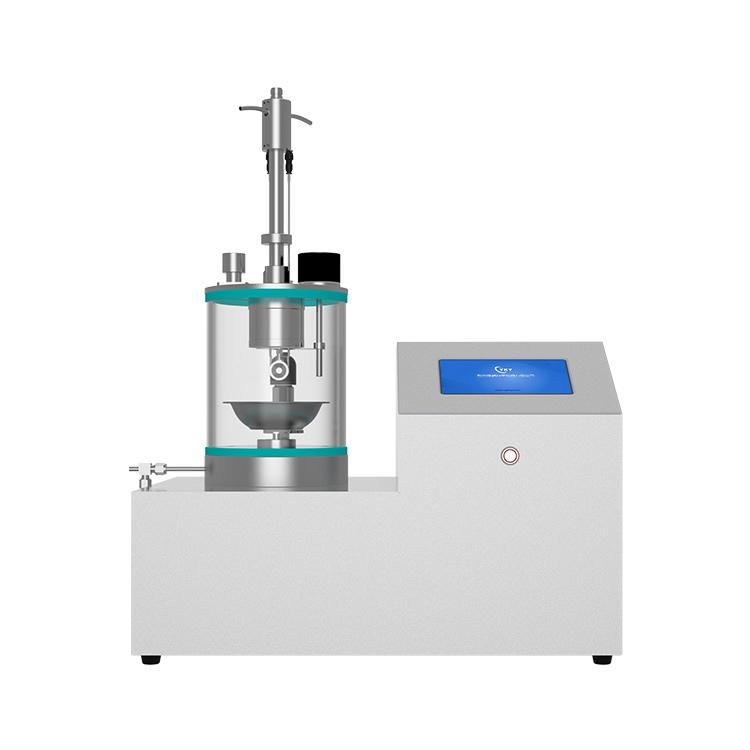

CYSI CY-MSZ180-DC-Q desktop single-target DC magnetron sputtering coater with fully transparent quartz chamber, 600 L/s turbo pump, 1.0×10⁻⁴ Pa base pressure, and rotating sample stage for metal and ceramic thin films.
The CYSI CY-MSZ180-DC-Q Desktop Quartz Cavity Single Target Magnetron Sputtering Coating Instrument features a fully omnidirectionally transparent quartz chamber for unobstructed real-time observation of the sputtering process. The compact modular design, 600 L/s turbomolecular pump achieving 1.0×10⁻⁴ Pa base pressure, and rotating heated sample stage make this instrument the ideal starting system for metal film preparation, electronic/optical coatings, ceramic films, and SEM sample preparation.
| Parameter | Value / Details |
|---|---|
| Product Model | CY-MSZ180-DC-Q |
| Chamber Material | 304 Stainless Steel |
| Chamber Size | φ180 mm × 200 mm |
| Observation Window | Omnidirectionally transparent quartz |
| Target | 2-inch; Dia. 50.8 mm, thickness ≤ 3 mm |
| Sample Stage | φ100 mm rotating |
| Molecular Pump | 600 L/s |
| Base Pressure | 1.0 × 10⁻⁴ Pa |
| Power Supply | DC 300 W |
| Supply Voltage | AC 220V / 50–60 Hz |
| Total Power | 2 kW |
| Dimensions | 550 × 350 × 450 mm |
| Applications | Metal films, optical coatings, ceramics, SEM prep |
| Trade Detail | Information |
|---|---|
| Minimum Order Quantity | 1 Unit |
| Supply Ability | 4 Units Per Month |
| Delivery Time | 1–16 Weeks |
| Main Domestic Market | China |
| Export Markets | Worldwide |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Packaging | Wooden crate with foam-padded export packing |
| Warranty | 12 Months from date of commissioning |
| After-Sales Service | Online technical support + on-site service available |
| Customization | Available on request |
