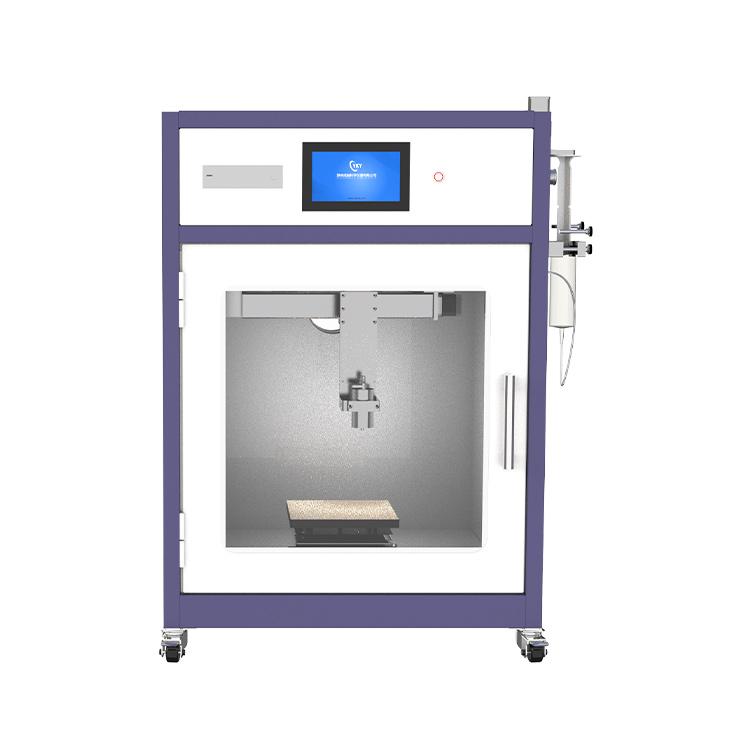

The CYSI Automatic Ultrasonic Spray Pyrolysis Coater atomises precursor solutions into fine aerosol droplets using a 1.7 MHz ultrasonic nozzle and deposits them onto heated substrates where pyrolytic decomposition forms dense, adherent oxide thin films. Fully automated X-Y scanning stage, programmable substrate temperature up to 500°C, and adjustable spray parameters enable deposition of ITO, ZnO, TiO₂, SnO₂:F (FTO), and perovskite precursor films with excellent large-area uniformity.
Specifications
| Parameter | Value / Details |
|---|
| Product Model | CY-SprayP-Auto |
| Atomisation Method | Ultrasonic — 1.7 MHz piezoelectric nozzle |
| Droplet Size | 10–50 µm median diameter |
| X-Y Scanning Stage | Programmable — full substrate area coverage |
| Scan Area | Up to 200 × 200 mm |
| Substrate Heater | Up to 500 °C — PID controlled |
| Flow Rate Control | Peristaltic pump — 0.1–10 mL/min |
| Spray Pattern | Raster scan — adjustable overlap and speed |
| Carrier Gas | N₂ or Air — adjustable flow |
| Number of Nozzles | 1 (standard) / 2 (co-spray option) |
| Control System | PLC + touch-screen HMI — recipe automation |
| Film Types | ZnO, ITO, TiO₂, SnO₂, FTO, NiO, perovskite |
| Supply Voltage | AC 220 V / 50 Hz |
| Total Power | ≈ 2 kW |
| Applications | TCO films, solar cells, sensors, photocatalysis, perovskite ETL/HTL |
Trade Information
| Trade Detail | Information |
|---|
| Minimum Order Quantity | 1 Unit |
| Supply Ability | 4 Units Per Month |
| Delivery Time | 3–8 Weeks |
| Main Domestic Market | China |
| Export Markets | Worldwide |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Packaging | Wooden crate with foam-padded export packing |
| Warranty | 12 Months from date of commissioning |
| After-Sales Service | Online technical support + on-site service available |
| Customization | Available on request |
