CYSI 1000mm large-format spin coater with stainless steel chamber, vacuum chuck, programmable multi-step speed control, and ±2% film thickness uniformity for photoresist, perovskite, and polymer thin film deposition.

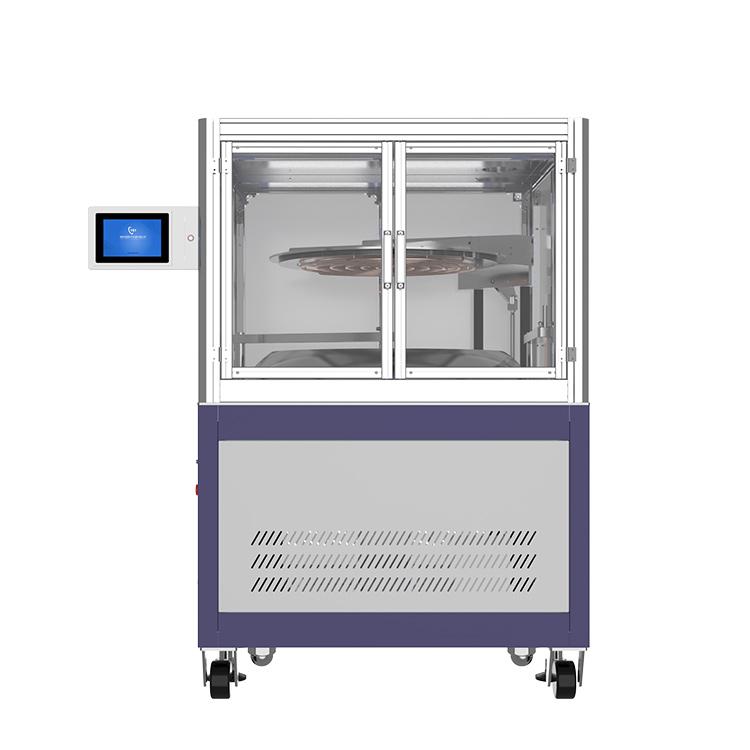

The CYSI 1000mm Spin Coater for Photoresist Film combines a large-format chemically resistant stainless steel chamber with a fully programmable multi-step speed controller and integrated vacuum substrate clamping. Precision-balanced spindle design delivers ±2% film thickness uniformity across the full substrate area, making this system essential for large-area photolithography, solar cell electrode coating, and advanced display fabrication.
| Parameter | Value / Details |
|---|---|
| Product Model | CY-SP1000-SS |
| Maximum Substrate Size | 1000 mm |
| Chamber Material | 304 Stainless Steel |
| Speed Range | 0 – 8000 rpm (programmable) |
| Acceleration | Fully programmable |
| Film Uniformity | ±2% |
| Chuck | Integrated vacuum substrate clamping |
| Control Interface | Touch screen with multi-step program storage |
| Applications | Photoresist, SOG, perovskite, polymer films on large substrates |
| Trade Detail | Information |
|---|---|
| Minimum Order Quantity | 1 Unit |
| Supply Ability | 4 Units Per Month |
| Delivery Time | 1–16 Weeks |
| Main Domestic Market | China |
| Export Markets | Worldwide |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Packaging | Wooden crate with foam-padded export packing |
| Warranty | 12 Months from date of commissioning |
| After-Sales Service | Online technical support + on-site service available |
| Customization | Available on request |
