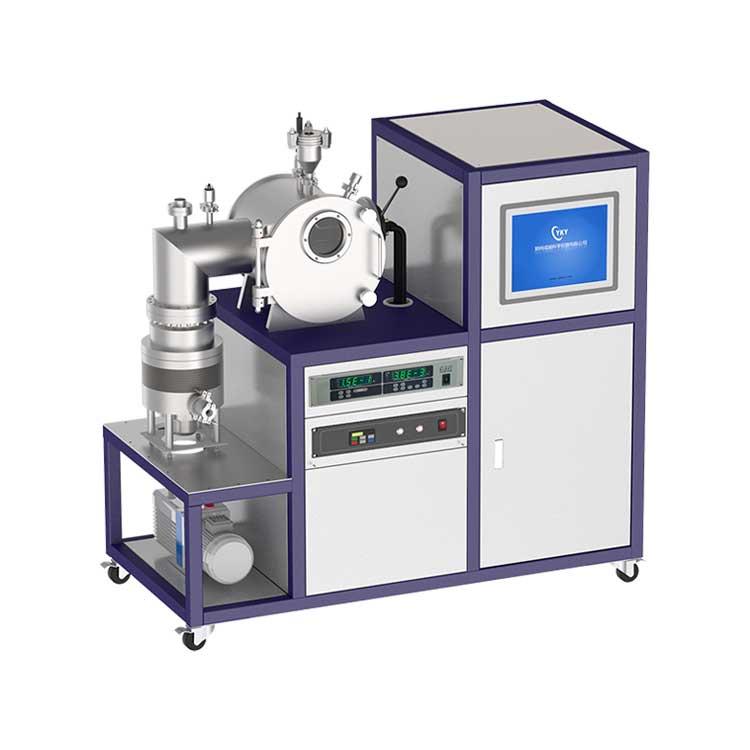

The CYSI Ultra-High Temperature Vacuum Electric Furnace uses a pure tungsten resistance heater to achieve operating temperatures up to 2400°C in high-vacuum or inert atmosphere, making it the premier system for sintering of refractory metals (W, Mo, Ta, Re), ultra-high temperature ceramics (HfC, ZrC, TiB₂), and advanced composites. Water-cooled double-wall construction, radiation shielding panels, and precise PID temperature control ensure safe, reproducible processing at extreme temperatures.
Specifications
| Parameter | Value / Details |
|---|
| Product Model | CY-VFurnace-W-2400 |
| Maximum Temperature | 2400 °C |
| Heating Element | Pure tungsten (W) resistance heater |
| Temperature Uniformity | ± 10 °C in hot zone |
| Hot Zone Size | 100 × 100 × 150 mm (W × H × D) |
| Vacuum Level | < 5 × 10⁻³ Pa |
| Vacuum System | Turbomolecular pump + rotary vane pump |
| Radiation Shielding | Multi-layer Mo + W radiation shields |
| Cooling | Water-cooled double-wall shell |
| Atmosphere | High vacuum / partial pressure Ar |
| Temperature Controller | PID — 30-segment programmable |
| Thermocouple | W-Re (Type C) — up to 2320 °C |
| Supply Voltage | AC 380 V / 50 Hz, 3-phase |
| Total Power | ≈ 40 kW |
| Applications | W, Mo, Ta sintering; HfC, ZrC, TiB₂ UHTC processing |
Trade Information
| Trade Detail | Information |
|---|
| Minimum Order Quantity | 1 Unit |
| Supply Ability | 4 Units Per Month |
| Delivery Time | 3–8 Weeks |
| Main Domestic Market | China |
| Export Markets | Worldwide |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Packaging | Wooden crate with foam-padded export packing |
| Warranty | 12 Months from date of commissioning |
| After-Sales Service | Online technical support + on-site service available |
| Customization | Available on request |
