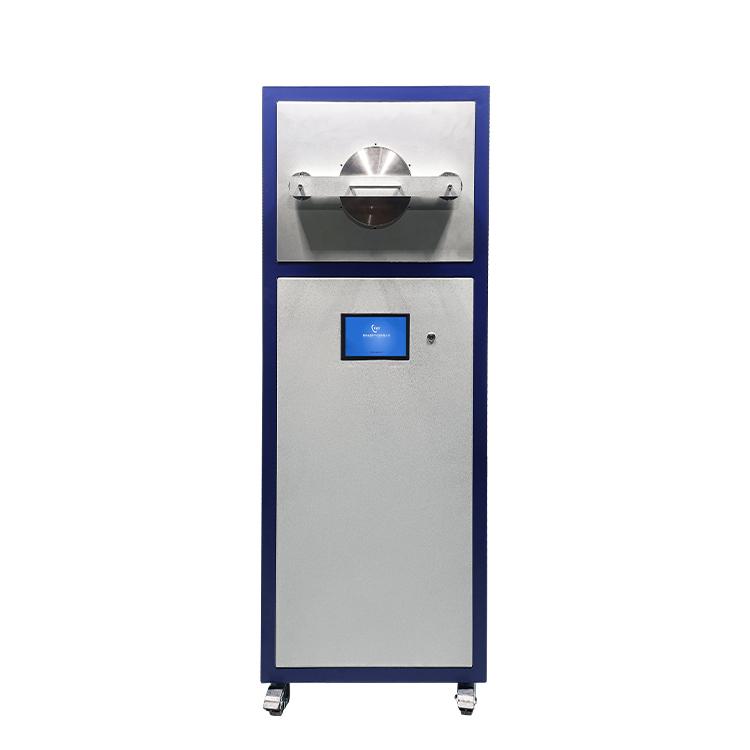

The CYSI Vacuum Annealing Furnace is purpose-built for stress relief, homogenisation, and microstructure optimisation of 3D-printed (SLM, EBM) titanium, nickel superalloy, and stainless steel components under high-vacuum atmosphere. Precise PID temperature control with programmable ramp/soak/cool profiles ensures repeatable heat treatment results without surface oxidation or contamination.
The CYSI Vacuum Annealing Furnace is purpose-built for stress relief, homogenisation, and microstructure optimisation of 3D-printed (SLM, EBM) titanium, nickel superalloy, and stainless steel components under high-vacuum atmosphere. Precise PID temperature control with programmable ramp/soak/cool profiles ensures repeatable heat treatment results without surface oxidation or contamination.
| Parameter | Value / Details |
|---|---|
| Product Model | CY-VAC-Anneal-3D |
| Maximum Temperature | 1600 °C |
| Temperature Uniformity | ± 5 °C in hot zone |
| Vacuum Level | < 1 × 10⁻³ Pa (high vacuum) |
| Vacuum System | Turbomolecular pump + rotary vane pump |
| Heating Elements | Mo (molybdenum) or SiC — selectable by temp range |
| Hot Zone Size | 200 × 200 × 300 mm (W × H × D) |
| Temperature Controller | PID — 30-segment programmable ramp/soak |
| Cooling Method | Furnace cool or rapid gas quench (optional) |
| Atmosphere | High vacuum / partial pressure Ar or N₂ |
| Thermocouple | Type-S (Pt-Rh) — ± 1 °C accuracy |
| Supply Voltage | AC 380 V / 50 Hz, 3-phase |
| Total Power | ≈ 20 kW |
| Overall Dimensions | 1000 × 800 × 1600 mm |
| Applications | 3D-printed Ti, Ni superalloy, SS stress relief; ceramics sintering |
| Trade Detail | Information |
|---|---|
| Minimum Order Quantity | 1 Unit |
| Supply Ability | 4 Units Per Month |
| Delivery Time | 3–8 Weeks |
| Main Domestic Market | China |
| Export Markets | Worldwide |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Packaging | Wooden crate with foam-padded export packing |
| Warranty | 12 Months from date of commissioning |
| After-Sales Service | Online technical support + on-site service available |
| Customization | Available on request |
