CYSI CY-M1200-12L laboratory muffle furnace with 12L alumina chamber, 1200°C max, 30-segment Yudian PID controller, three-sided heating, forced air cooling, and over-temperature protection for sintering and calcination.

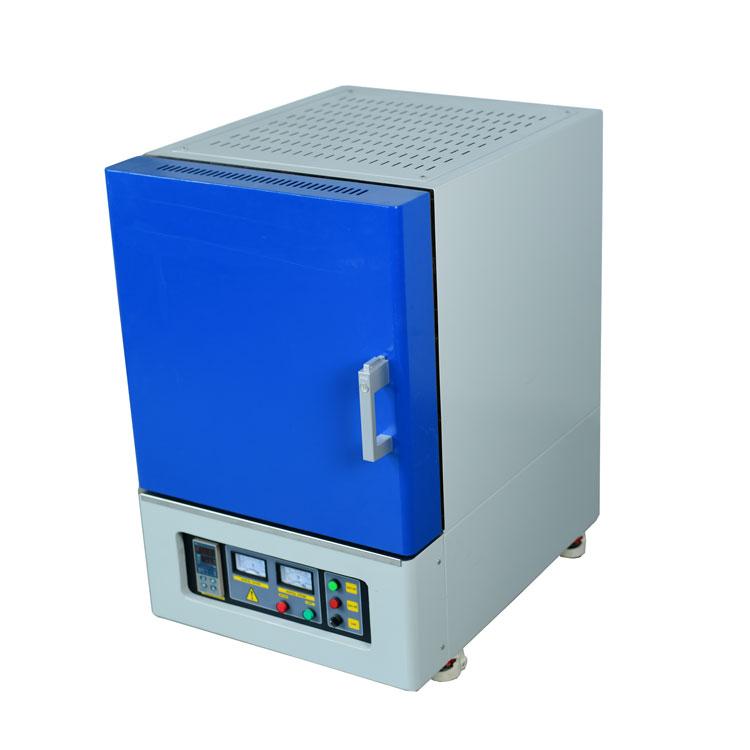

The CYSI CY-M1200-12L Laboratory 1200°C High Temperature Muffle Furnace combines a 12-litre high-purity alumina polycrystalline fibre chamber with a 30-segment Yudian PID temperature controller, delivering precise, repeatable thermal processing for sintering, ashing, calcination, and metal annealing. Three-sided heating (left, right, and upper) and a double-layer forced air-cooled shell maintain excellent temperature field uniformity and an outer surface temperature below 60°C for operator safety.
| Parameter | Value / Details |
|---|---|
| Product Model | CY-M1200-12L |
| Max Temperature | 1200 °C (continuous: 0–1100 °C) |
| Chamber Size | 300 × 200 × 200 mm — 12 L |
| Heating Rate | ≤ 10 °C/min (recommended) |
| Power | 220V single-phase — 6 kW |
| Temp Accuracy | ±1 °C |
| Controller | Yudian 30-segment PID |
| Heating Element | Nickel-chrome resistance wire |
| Furnace Material | High-purity alumina polycrystalline fibre |
| Heating Zones | Three-sided (L, R, Top) |
| Shell | Double-layer forced air cooling — <60°C outer |
| Protections | Over-temp, TC break, overcurrent, power-failure memory |
| Gross Weight | 112 kg |
| Applications | Sintering, ashing, calcination, metal annealing, quality testing |
| Trade Detail | Information |
|---|---|
| Minimum Order Quantity | 1 Unit |
| Supply Ability | 4 Units Per Month |
| Delivery Time | 1–16 Weeks |
| Main Domestic Market | China |
| Export Markets | Worldwide |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Packaging | Wooden crate with foam-padded export packing |
| Warranty | 12 Months from date of commissioning |
| After-Sales Service | Online technical support + on-site service available |
| Customization | Available on request |
