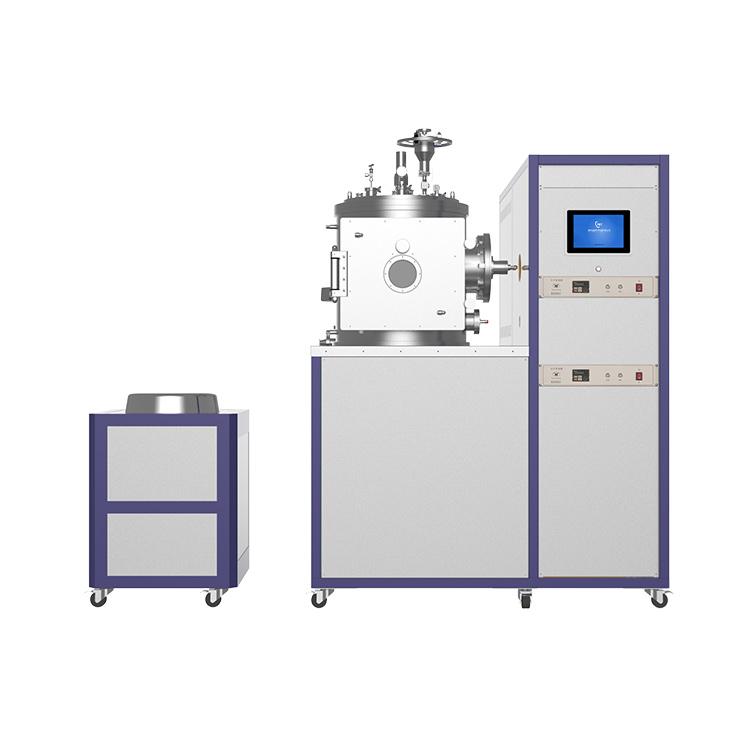

CYSI 2200°C directional solidification furnace with medium-frequency induction heating, motorised lifting mechanism, and vacuum/inert atmosphere for single crystal growth, turbine blade casting, and advanced materials synthesis.
The CYSI 2200°C Directional Solidification Furnace employs medium-frequency induction heating with precise temperature gradient control to produce directionally solidified and single-crystal materials under vacuum or inert protective atmosphere. The motorised lifting mechanism enables controlled crystal growth rates for the synthesis of turbine blades, optical crystals, polycrystalline silicon, and advanced functional materials requiring specific crystallographic orientation.
| Parameter | Value / Details |
|---|---|
| Maximum Temperature | 2200 °C |
| Heating Method | Medium-frequency induction heating |
| Furnace Structure | Vertical — directional crystalliser with lifting mechanism |
| Atmosphere | Vacuum or inert gas (Ar/N₂) |
| Heating Element | Graphite or resistance element |
| Temperature Control | Precision PID — programmable |
| Applications | Single crystals, turbine blades, polycrystalline Si, optical crystals, thermoelectric materials |
| Trade Detail | Information |
|---|---|
| Minimum Order Quantity | 1 Unit |
| Supply Ability | 4 Units Per Month |
| Delivery Time | 1–16 Weeks |
| Main Domestic Market | China |
| Export Markets | Worldwide |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Packaging | Wooden crate with foam-padded export packing |
| Warranty | 12 Months from date of commissioning |
| After-Sales Service | Online technical support + on-site service available |
| Customization | Available on request |
