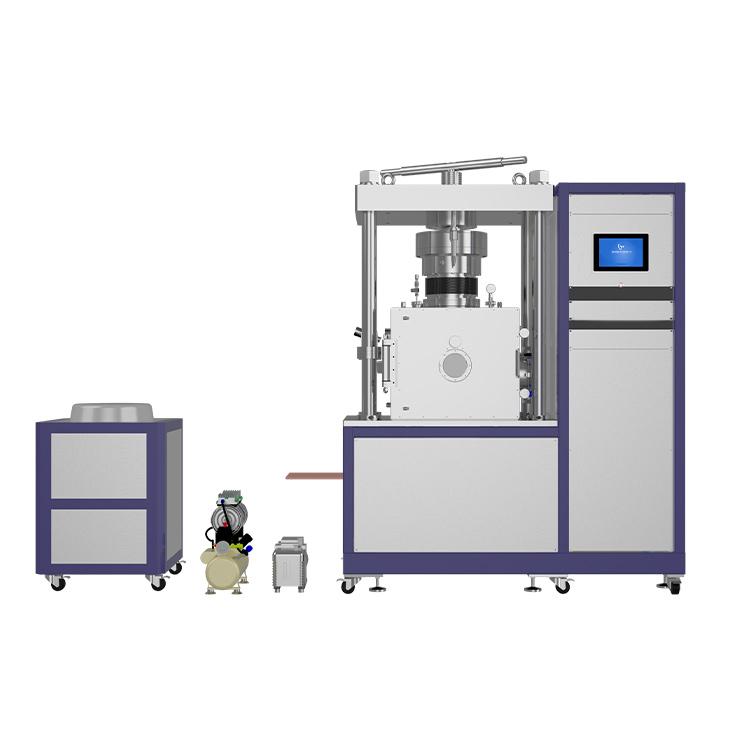

2000℃ 100T spark plasma sintering furnace
CYSI CY-SPS500-80KW-100T spark plasma sintering furnace with 80kW pulse power, 100T hydraulic press, 300°C/min heating rate, and 2000°C max for rapid densification of ceramics, metals, and nanomaterials.
The CYSI CY-SPS500-80KW-100T Spark Plasma Sintering Furnace harnesses high-current DC pulse discharge to simultaneously apply electrical and mechanical energy to powder compacts, achieving full densification at lower temperatures in a fraction of the time required by conventional sintering. With 80kW pulse power, 100T hydraulic pressure, and a maximum temperature of 2000°C, this system is ideal for ceramics, metals, nanomaterials, amorphous materials, solid electrolytes, and thermoelectric composites.
Specifications
| Parameter | Value / Details |
|---|---|
| Product Model | CY-SPS500-80KW-100T |
| Maximum Temperature | 2000 °C (IR) / 1200 °C (Type K TC) |
| Power | 80 kW |
| Input Power | AC 380V, 50Hz, 3-phase |
| Output Current | DC 0–10,000 A |
| Max Pressure | 100 T |
| Max Heating Rate | 300 °C/min |
| Pulse Frequency | 2–1000 Hz (adjustable) |
| Temp Control Accuracy | 0.1 °C |
| Vacuum | 10 Pa (mech pump) / 1 Pa (mol pump) |
| Mold Diameter | 12–50 mm (customisable) |
| Certifications | CE |
| Applications | Ceramics, metals, nanomaterials, solid electrolytes, thermoelectrics |
Trade Information
| Trade Detail | Information |
|---|---|
| Minimum Order Quantity | 1 Unit |
| Supply Ability | 4 Units Per Month |
| Delivery Time | 1–16 Weeks |
| Main Domestic Market | China |
| Export Markets | Worldwide |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Packaging | Wooden crate with foam-padded export packing |
| Warranty | 12 Months from date of commissioning |
| After-Sales Service | Online technical support + on-site service available |
| Customization | Available on request |
