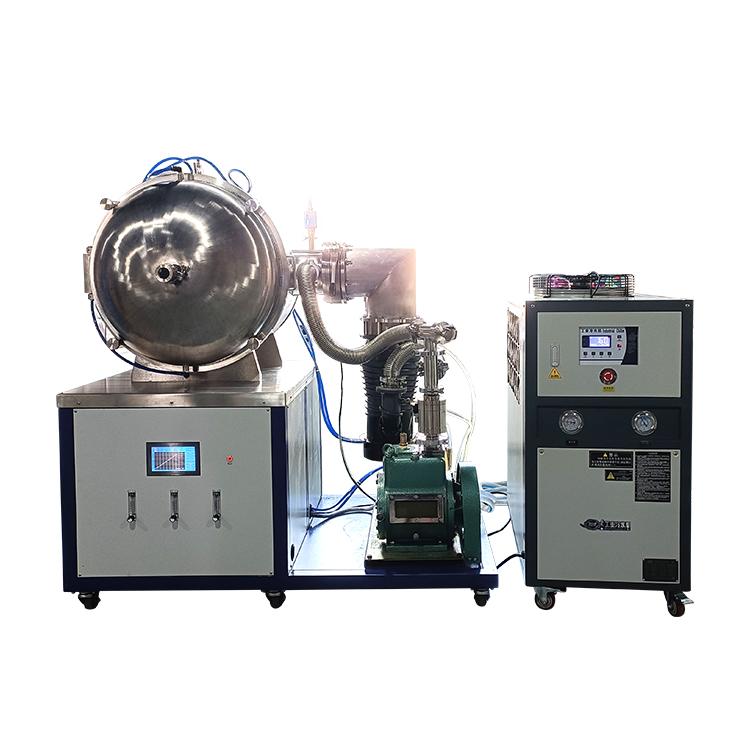

The CYSI 1700°C Vacuum Sintering Furnace provides an ultra-high-temperature, high-vacuum environment for sintering of advanced ceramics, silicon carbide, silicon nitride, alumina, zirconia, and refractory materials. MoSi₂ heating elements deliver uniform temperature up to 1700°C under vacuum, with a programmable multi-segment temperature profile controller ensuring precise thermal cycle reproducibility.
Specifications
| Parameter | Value / Details |
|---|
| Product Model | CY-VSINT-1700 |
| Maximum Temperature | 1700 °C |
| Temperature Uniformity | ± 5 °C in hot zone |
| Heating Elements | MoSi₂ (molybdenum disilicide) |
| Hot Zone Size | 200 × 200 × 200 mm (W × H × D) |
| Vacuum Level | < 5 × 10⁻² Pa |
| Vacuum System | Turbomolecular pump + rotary vane pump |
| Atmosphere | High vacuum / partial pressure Ar or N₂ |
| Temperature Controller | PID — 30-segment programmable ramp/soak |
| Thermocouple | Type-S (Pt-Rh) — ± 1 °C accuracy |
| Heating Rate | Up to 20 °C/min |
| Cooling | Furnace cool — optional forced gas cooling |
| Supply Voltage | AC 380 V / 50 Hz, 3-phase |
| Total Power | ≈ 30 kW |
| Applications | Al₂O₃, ZrO₂, SiC, Si₃N₄, TiC, WC ceramics sintering |
Trade Information
| Trade Detail | Information |
|---|
| Minimum Order Quantity | 1 Unit |
| Supply Ability | 4 Units Per Month |
| Delivery Time | 3–8 Weeks |
| Main Domestic Market | China |
| Export Markets | Worldwide |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Packaging | Wooden crate with foam-padded export packing |
| Warranty | 12 Months from date of commissioning |
| After-Sales Service | Online technical support + on-site service available |
| Customization | Available on request |
