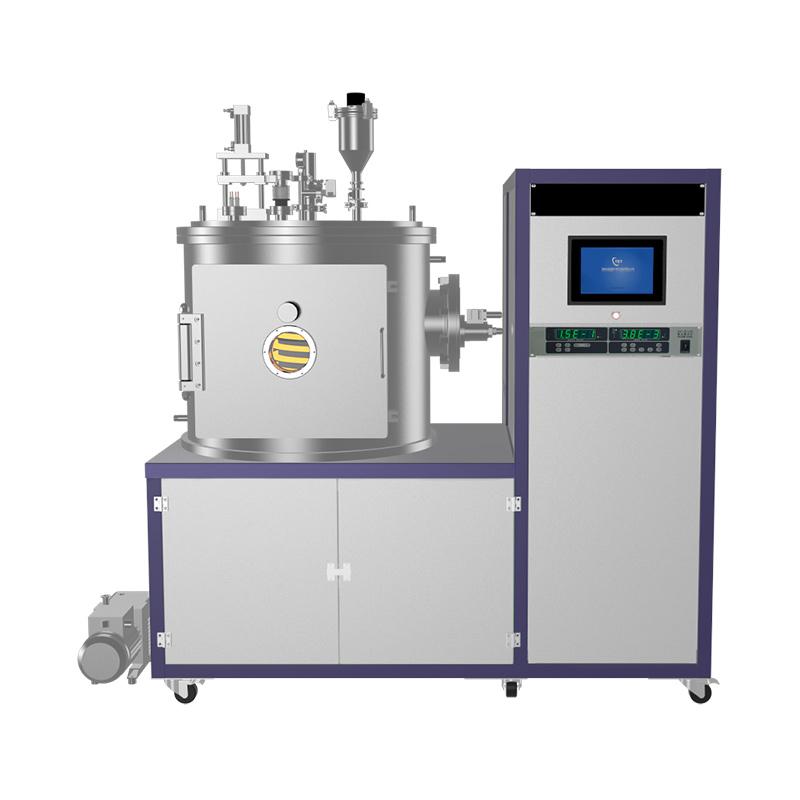

The CYSI 10 kg Medium-Frequency Vacuum Induction Melting Furnace delivers precise melting and alloying of nickel-based superalloys, titanium alloys, magnetic alloys, and precious metals under high-vacuum conditions. The medium-frequency (MF) induction power supply provides intensive stirring and rapid melting, and the integrated tilt-pour casting system enables clean, inclusion-free casting into preheated moulds under vacuum or protective atmosphere.
Specifications
| Parameter | Value / Details |
|---|
| Product Model | CY-VIM-10kg-MF |
| Melting Capacity | 10 kg (steel equivalent) |
| Power Supply Frequency | 1–10 kHz medium frequency |
| Induction Power | 100 kW |
| Maximum Temperature | 1800 °C |
| Vacuum Level | < 1 × 10⁻² Pa (pre-melt) |
| Backfill Gas | High-purity Ar — tilt-pour under protective atmosphere |
| Crucible Material | MgO, Al₂O₃, or graphite — selectable |
| Crucible Capacity | 10 kg (Ni-based) / 5 kg (Ti) |
| Casting Method | Tilt-pour — 0–100° tilting angle |
| Vacuum System | Turbomolecular pump + rotary vane pump |
| EM Stirring | Yes — inherent induction stirring |
| Supply Voltage | AC 380 V / 50 Hz, 3-phase |
| Total Power | ≈ 120 kW (induction + auxiliary) |
| Applications | Ni superalloys, Ti alloys, magnetic alloys, precious metals |
Trade Information
| Trade Detail | Information |
|---|
| Minimum Order Quantity | 1 Unit |
| Supply Ability | 4 Units Per Month |
| Delivery Time | 3–8 Weeks |
| Main Domestic Market | China |
| Export Markets | Worldwide |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Packaging | Wooden crate with foam-padded export packing |
| Warranty | 12 Months from date of commissioning |
| After-Sales Service | Online technical support + on-site service available |
| Customization | Available on request |
