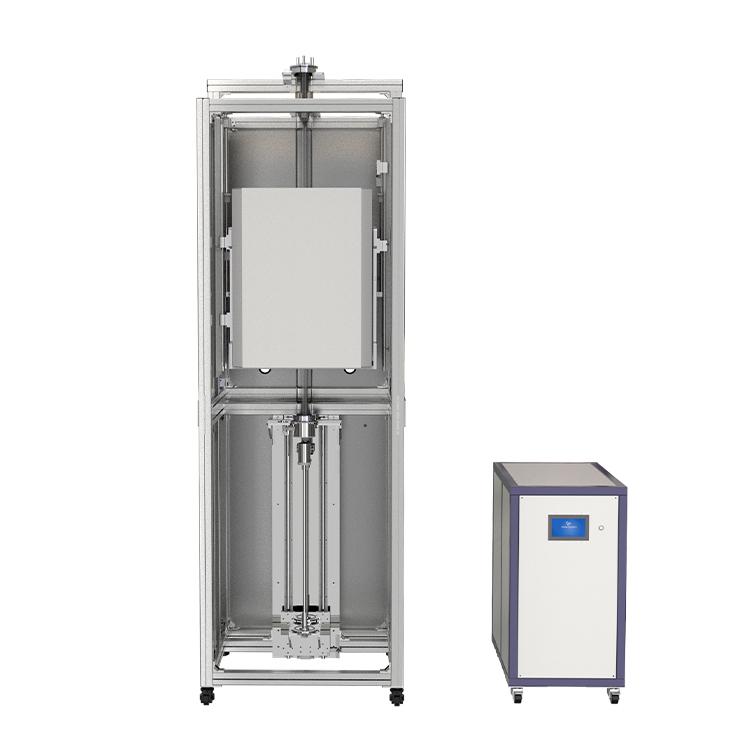

The CYSI 1650°C Bridgman Crystal Growth Furnace provides precise thermal gradient control for directional solidification and single crystal growth of sapphire (Al₂O₃), silicon nitride (Si₃N₄), yttrium aluminium garnet (YAG), and other oxide and nitride crystals. The independently controlled hot zone and cold zone with programmable withdrawal speed deliver reproducible crystal growth rates and minimal grain boundary density for research and small-scale production applications.
Specifications
| Parameter | Value / Details |
|---|
| Product Model | CY-Bridgman-1650 |
| Maximum Temperature | 1650 °C |
| Hot Zone Temperature | Independently controlled — up to 1650 °C |
| Cold Zone Temperature | Independently controlled — programmable gradient |
| Temperature Gradient | 10–100 °C/cm (adjustable) |
| Withdrawal Speed | 0.1–10 mm/h (programmable servo drive) |
| Crystal Rotation | 0–60 rpm (for Czochralski-Bridgman hybrid mode) |
| Crucible Material | Mo, W, Al₂O₃, or ZrO₂ — material dependent |
| Crucible Size | Up to Ø 60 mm × 200 mm |
| Atmosphere | Vacuum / Ar / N₂ / reducing — selectable |
| Temperature Controller | Dual-zone PID — 30-segment programmable |
| Supply Voltage | AC 380 V / 50 Hz, 3-phase |
| Total Power | ≈ 25 kW |
| Overall Dimensions | 800 × 700 × 1800 mm |
| Applications | Sapphire, YAG, Si₃N₄, BaF₂, NaI scintillator crystals |
Trade Information
| Trade Detail | Information |
|---|
| Minimum Order Quantity | 1 Unit |
| Supply Ability | 4 Units Per Month |
| Delivery Time | 3–8 Weeks |
| Main Domestic Market | China |
| Export Markets | Worldwide |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Packaging | Wooden crate with foam-padded export packing |
| Warranty | 12 Months from date of commissioning |
| After-Sales Service | Online technical support + on-site service available |
| Customization | Available on request |
